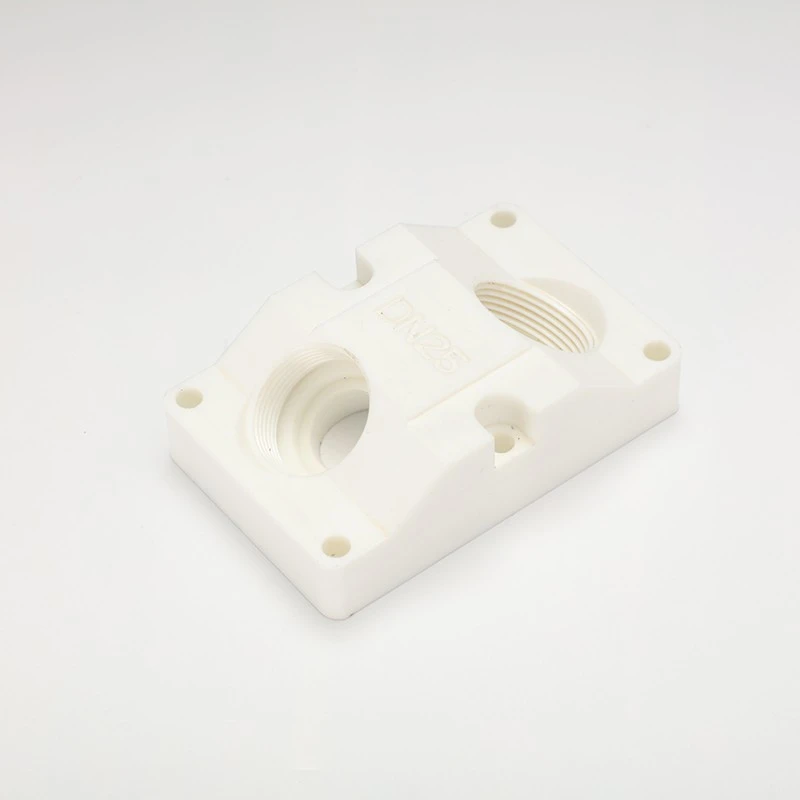

Precision Plastic Molding

Many clients think plastic parts are only for rough jobs. But medical, optical, and electronic plastic parts have tolerances as strict as metal parts. Hayi Technology's precision plastic molding service uses high precision injection molding machines and molds. Dimension tolerance can reach ±0.02mm. For example, an optical instrument company needed a batch of PMMA lens holders with coaxiality of 0.01mm. We did mold flow analysis and process optimization. We met the requirement. The client said several other shops could not do it. This case shows precision plastic molding is a technical skill. Our MOQ is 1 piece.

High Precision Molds and Stable Process Control

We use high precision injection molding machines with injection speed control accuracy of ±0.1mm/s. Molds are machined with slow wire EDM and EDM. Cavity accuracy is ±0.005mm. Common engineering plastics are PC, PMMA, POM, PA66, PBT, PPS, PEEK, and LCP. We apply our patent "a foot pad molding die that is easy to demould" (ZL202123396798.0) to ensure no deformation during ejection. We hold ISO9001:2015 certification. Each batch is inspected with a vision measuring system for critical dimensions. Before packing, we do 100% full inspection. We also accept third-party inspection. Our precision plastic molding service is ready for your medical and optical clients.

Precision plastic parts often need multiple mold trials. Our custom sample time is 1 day minimum. Batch lead time is about 15 days. Payment: 30% deposit for standard products, 50% deposit for custom molds. Trade terms: EXW, FOB, DDP. During production, we send photo or video updates. If any problem occurs, we talk immediately and improve after we find the cause. We have a dedicated after-sales person. Medical and optical industries have high profit margins but strict requirements. Our technicians can help you do mold flow analysis to predict warpage. You can enter high value added fields with our help.
